Send InquiryMaruti Rope Coiling Machines MP/CL - 2054
Price 500000.00 INR/ Unit
Maruti Rope Coiling Machines MP/CL - 2054 Specification
- Product Type
- Rope Coiling Machine
- General Use
- Rope Coiling
- Material
- Other
- Type
- Other
- Weight (kg)
- 350 Kilograms (kg)
- Computerized
- No
- Automatic
- Yes
- Control System
- Manual/Electric Panel
- Power Source
- Electric
- Power Consumption
- 7.5 Kilowatt (kW)
- Coil Diameter
- 54MM Millimeter (mm)
- Winding Head
- 1 Piece
- Winding Speed
- 150 RPM (Max.) miles/hr (MPH)
- Winding Spindle
- 4
- Drive Type
- Electric
- Voltage
- 415 Volt (v)
- Dimension (L*W*H)
- 13.9 X 5.1 X 5.9 Inch (in)
- Feature
- High Speed, High Precision, Low Energy Consumption
- Color
- Black & Metallic
- Easy Maintenance
- Yes
- Compact Design
- Yes
- Robust Frame
- Yes
- Rope Size Range
- 12 to 32 mm
- Heavy Duty Bearings
- Yes
- User Friendly
- Yes
- Max. Coil Weight
- 110 Kg
- Model
- MT CL/1232
Maruti Rope Coiling Machines MP/CL - 2054 Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 100 Units Per Month
- Delivery Time
- 90 Days
- Main Export Market(s)
- Western Europe, Middle East, Asia, Australia, Central America, North America, South America, Eastern Europe, Africa
- Main Domestic Market
- All India
About Maruti Rope Coiling Machines MP/CL - 2054
| Automation Grade | Automatic |
| Frequency | 50 Hz |
| Voltage | 380 V |
| Weight | 1250 Kg |
| Motor Capacity | 9.3 Kw |
| Country of Origin | Made in India |
| Head Speed | 130 RPM Max. |
| Coil Weight | 250 Kg |
| Model Name/Number | MP/CL - 2054 |
| Brand | Maruti Plastotech |
| Rope Size | 54mm |
| Production Capacity | 1595 Kg/Hr |

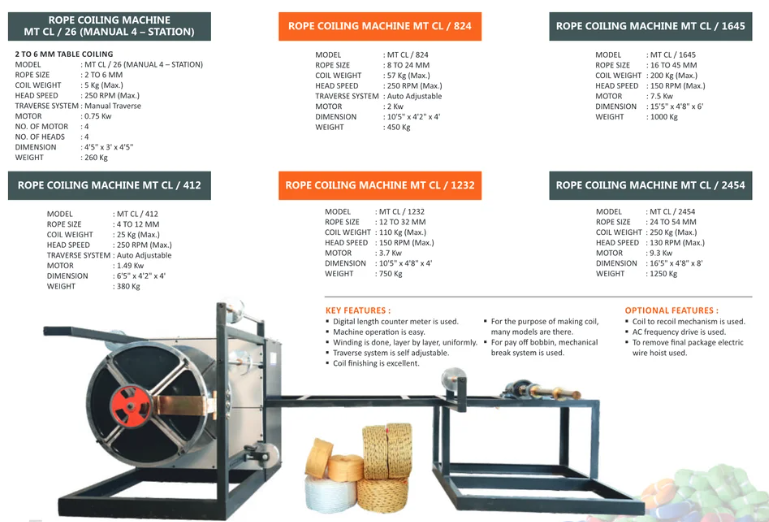

- Digital length counter meter is used
- Machine operation is easy
- Winding is done layer by layer, uniformly
- Traverse system is self-adjustable
- Coil finishing is excellent
- For the purpose of making coils, many models are available
- For the payoff bobbin, a mechanical break system is used
Optional Features:
- Coil-to-recoil mechanism is used
- AC frequency drive is used
- To remove the final package, an electric wire hoist is used
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
